RASCHEL TYPE-for raschel knitting machine

1. Product Overview
Warp knitting machine needles are specialised components used in Raschel and Tricot warp knitting machines to produce stable, dimensionally accurate fabrics. Unlike weft knitting, warp knitting involves each needle knitting its own yarn, creating fabrics with high tear strength, good drapability, and minimal curl.
Our warp knitting needles are manufactured from high-grade alloy steel with advanced vacuum heat treatment, delivering optimal hardness (60–64 HRC) and exceptional fatigue resistance. Available in various gauges and configurations to suit all major warp knitting machine brands including Karl Mayer, Liba, and Comez. Precision-ground hook, latch, and butt geometries ensure smooth high-speed operation, consistent stitch formation, and extended service life.
Applications include lingerie, sportswear, swimwear, automotive textiles, medical textiles, and technical fabrics such as geotextiles and agrotextiles.

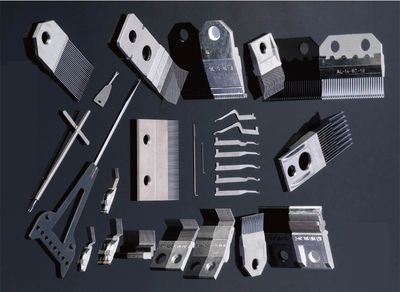

Other warp machinery spare parts are avaliable such as, platina , compound needles, and core needle blocks, sinker blocks, dispart needle block, guide needle block, yarn guide which for karl mayer, tricot,or liba and Chinese brand raschel warp machine.

2. Technical Specifications
Specification Description
Needle Types:Latch needles, compound needles, bearded needles (spring needles)
Gauge Range:14G – 40G (custom gauges available)
Material: High-grade alloy steel
Hardness: 60 – 64 HRC
Applicable Machines:Karl Mayer, Liba, Comez, and other major warp knitting machines
Applications:Lingerie, swimwear, sportswear, automotive textiles, medical textiles, technical fabrics

Precision Hook Geometry – Ensures consistent loop formation and minimal yarn breakage.
Advanced Heat Treatment – Vacuum hardening and tempering deliver superior wear resistance and fatigue strength.
Mirror-Finish Polishing – Reduces friction, yarn abrasion, and heat generation at high speeds.
High-Speed Compatibility – Engineered for stable operation at machine speeds up to 1,500 RPM.
Interchangeable Compatibility – Matches OEM specifications for seamless replacement.
